3. Microservices Rest

Introduction

In the previous lab we inspected the monolithic application. In this lab we will distribute the monolith in two independent microservices.

Both microservices will use RESTful APIs to communicate with each other. We build the order microservice and see why data consistency could be violated.

In a last step we will have a look at the MicroProfile Long Running Actions (LRA)¹ and how this could help for data consistency. At the end we will see how a SAGA orchestration approach could be built using LRA.

Splitting the Monolith

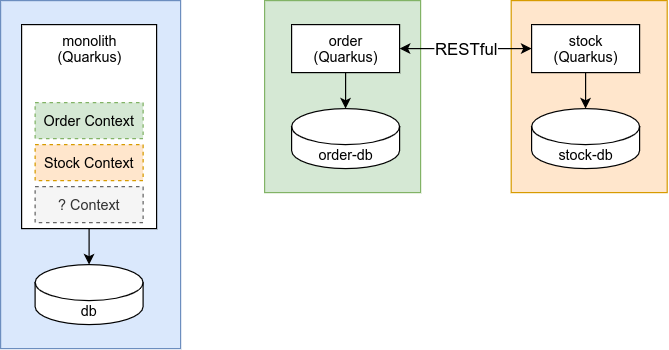

We will split our monolith in the two contexts order and stock. The order microservice will manage the orders. The stock microservice will manage the article stock and will decrement the available stock if there is a new order.

We expect the stock count of an article to be consistent with its order count.

Can you imagine another context which exists in the monolith?

Lab Overview

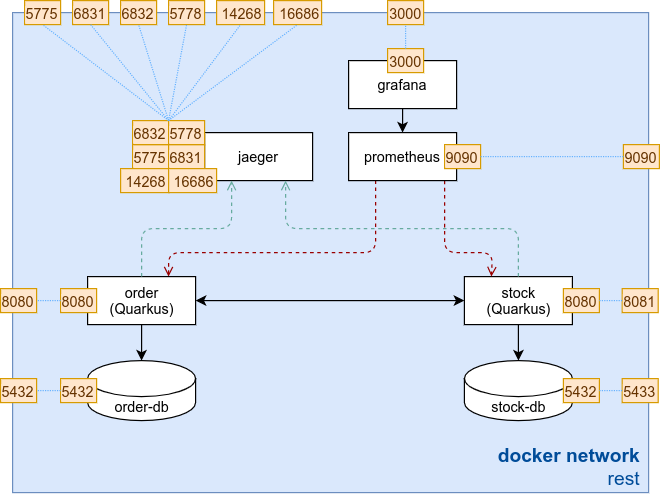

In the first version we will use the two microservice order and stock.

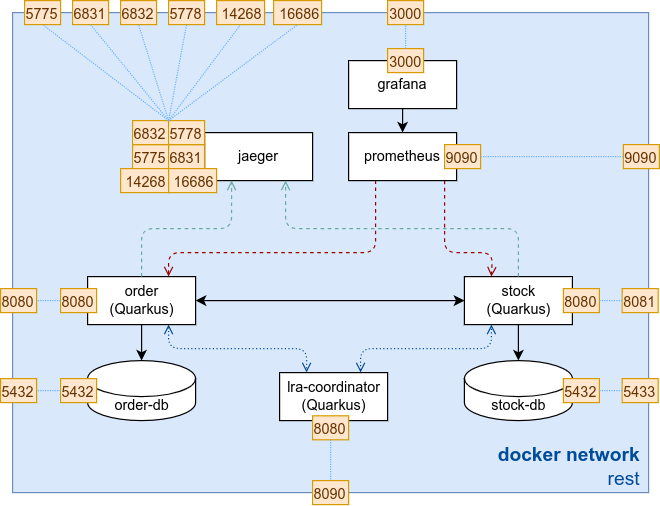

In a second version we will introduce the lra-coordinator to handle transactions and our environment will look like this.
