5.2 Docker Environment

Setting up your local docker environment for this lab.

Environment Setup

With completing this section the environment is configured. However, in the next few steps we will build the order microservice and its container. After this section you will not be able to start the environment as this container is still missing. You will be able to start it later.

Changes to the docker-compose file

The setup for this lab is similar as the previous. However, we use Kafka Connect with Debezium PostgreSQL connector to write messages to Kafka.

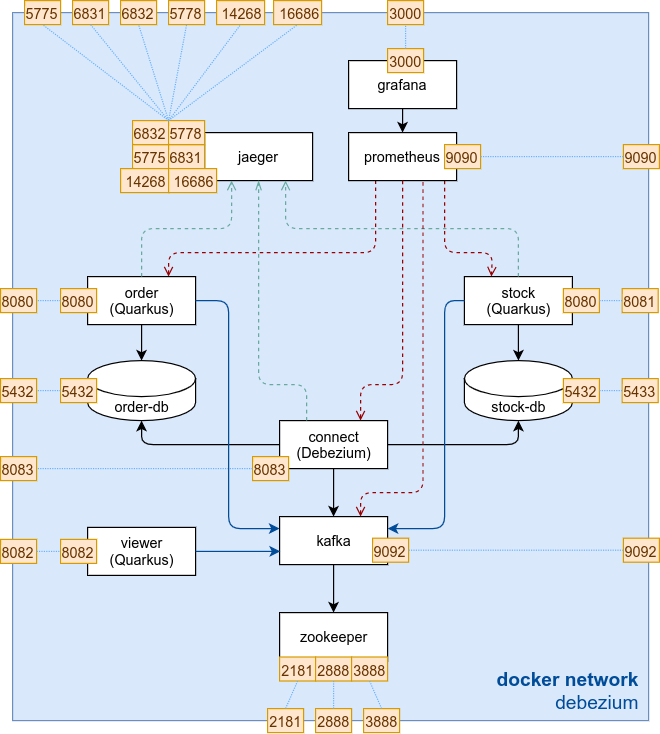

Environment

Kafka Connect with Debezium

For Kafka Connect a pre-built docker container based on the Kafka Strimzi image will be used.

The following was added to the docker-compose.yaml file:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
  connect:
    image: quay.io/acend/microservices-lab-debezium-connect:latest
    hostname: connect
    container_name: debezium-connect
    ports:
     - 8083:8083
    networks:
      - debezium
    depends_on:
     - kafka
     - order-db
     - stock-db
     - zookeeper
    command: /opt/kafka/kafka_connect_run.sh
    environment:
     - KAFKA_CONNECT_BOOTSTRAP_SERVERS=kafka:9092
     - |
         KAFKA_CONNECT_CONFIGURATION=
         key.converter=org.apache.kafka.connect.json.JsonConverter
         value.converter=org.apache.kafka.connect.json.JsonConverter
         key.converter.schemas.enable=false
         value.converter.schemas.enable=false
         group.id=connect-debezium
         offset.storage.topic=connect-debezium-offsets
         config.storage.topic=connect-debezium-configs
         status.storage.topic=connect-debezium-status
         offset.storage.replication.factor=1
         config.storage.replication.factor=1
         status.storage.replication.factor=1
         consumer.interceptor.classes=io.opentracing.contrib.kafka.TracingConsumerInterceptor
         producer.interceptor.classes=io.opentracing.contrib.kafka.TracingProducerInterceptor
     - KAFKA_CONNECT_METRICS_ENABLED=true
     - JAEGER_SERVICE_NAME=debezium-connect
     - JAEGER_AGENT_HOST=jaeger
     - STRIMZI_TRACING=jaeger

Database docker image

The Debezium PostgreSQL Connector needs to access the WAL log. We therefore switch to the quay.io/debezium/postgres:13 image maintained by Debezium. This image provides us the configurations and permissions needed to access the WAL log.

The following changes have been made in the docker-compose.yaml file:

order-db: changed image to quay.io/debezium/postgres:13
stock-db: changed image to quay.io/debezium/postgres:13

Task 5.2.1 - Inspecting the docker environment

Have a look at the /code/debezium/docker folder and get familiar with the docker environment specified in docker-compose.yaml.
